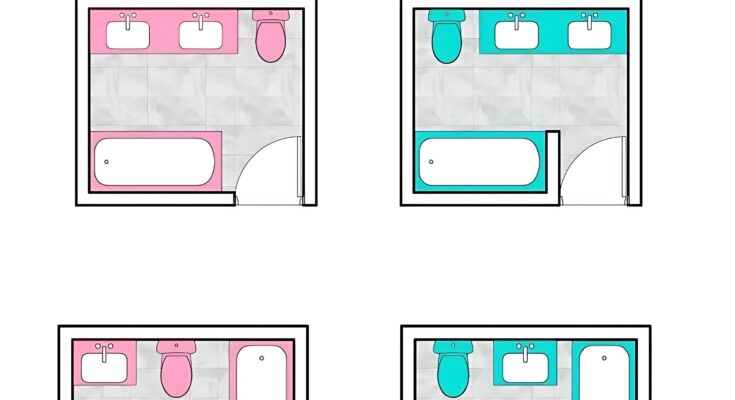

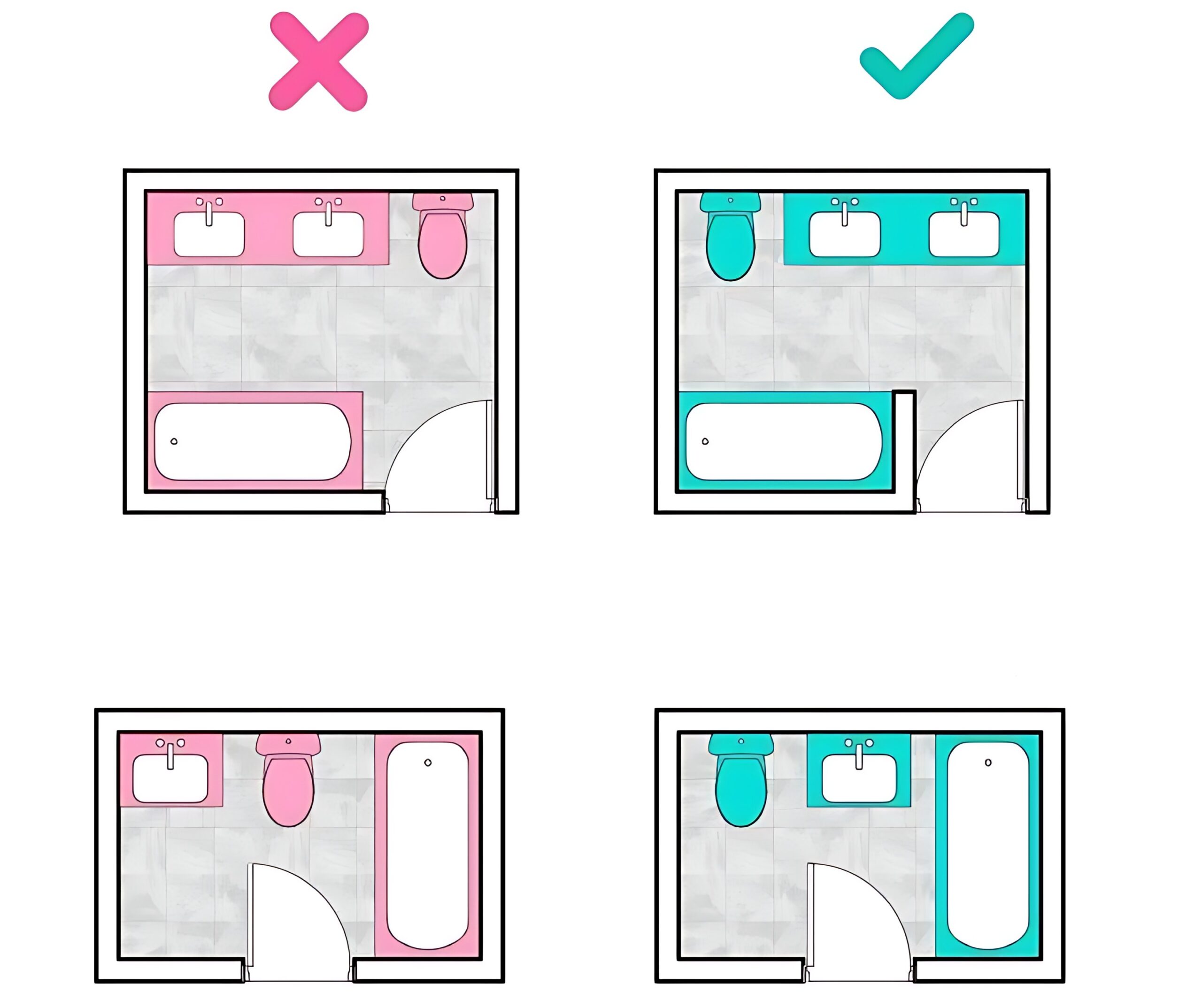

a visual comparison of bathroom layout options, highlighting the impact of fixture placement on the overall functionality and flow of the space. Let’s break down the details:
Overall Interpretation:
The image effectively uses a “before and after” approach, showing two sets of bathroom layouts with slight variations in fixture arrangement. The “before” layouts are marked with a red “X”, indicating they are less optimal, while the “after” layouts are marked with a green checkmark, signifying they are better solutions.
Key Features and Details:
Two Sets of Layouts: The image presents two pairs of bathroom layouts, each pair showing a “before” and “after” scenario with minor adjustments.
Fixture Placement:
Toilet: The toilet’s position is the primary focus of the comparison. In the “before” layouts, the toilet is placed directly in front of the entrance, potentially creating an awkward and less private experience. In the “after” layouts, the toilet is moved to the side, improving privacy and flow.
Sink: The sink’s position remains relatively consistent in both layouts, typically placed beside the toilet.
Bathtub: The bathtub’s position is also consistent in both layouts, usually placed along the back wall.
Door Swing: The door swing is shown in both layouts, indicating how the door opens into the bathroom.
Floor Tiles: The floor is represented with a light gray tile pattern, providing a sense of context.
Color Coding: The “before” layouts use pink for the fixtures, while the “after” layouts use blue. This helps to visually distinguish the two options.
Checkmark and X: The green checkmark and red “X” symbols clearly indicate the preferred and less preferred layouts.
Inferences and Potential Considerations:
Privacy: The primary focus of the comparison is on improving privacy by moving the toilet away from the direct line of sight from the entrance.
Flow and Functionality: Moving the toilet to the side improves the overall flow of the bathroom and makes it more functional.
Door Swing Impact: The door swing can affect the placement of fixtures and the overall layout of the bathroom.
Space Optimization: The “after” layouts demonstrate how minor adjustments in fixture placement can significantly improve the use of space.
Visual Communication: The image effectively uses visual communication to convey the message, making it easy to understand the impact of fixture placement on bathroom layout.
Overall, this image is a helpful visual guide for understanding the importance of fixture placement in bathroom design. It highlights how minor adjustments can significantly improve privacy, flow, and functionality
